Wire Mesh Conveyor Belt

Wire mesh belt is popularly also known as spiral woven belt or mesh belt. Balanced Spiral belt is an extremely popular mesh design, found in almost every manufacturing industry with a wide ranging number of possible applications. Benefits of Balanced Spiral belt include straight-running operation, an excellent strength to weight ratio and an extremely wide variety of mesh specifications to suit each individual application.

Constructed from alternating left and right hand spiral coils. These coils are held in place by interconnecting crimp rods which run through the width of the belt. The edges of the belt can be supplied either welded or with a knuckled selvedge.

Balanced Spiral gains its excellent tracking properties by employing an alternating pattern which prevents the belt from pulling to one side. Lateral movement within the belt is reduced by the use of specially crimped rods which hold each spiral coil in place.

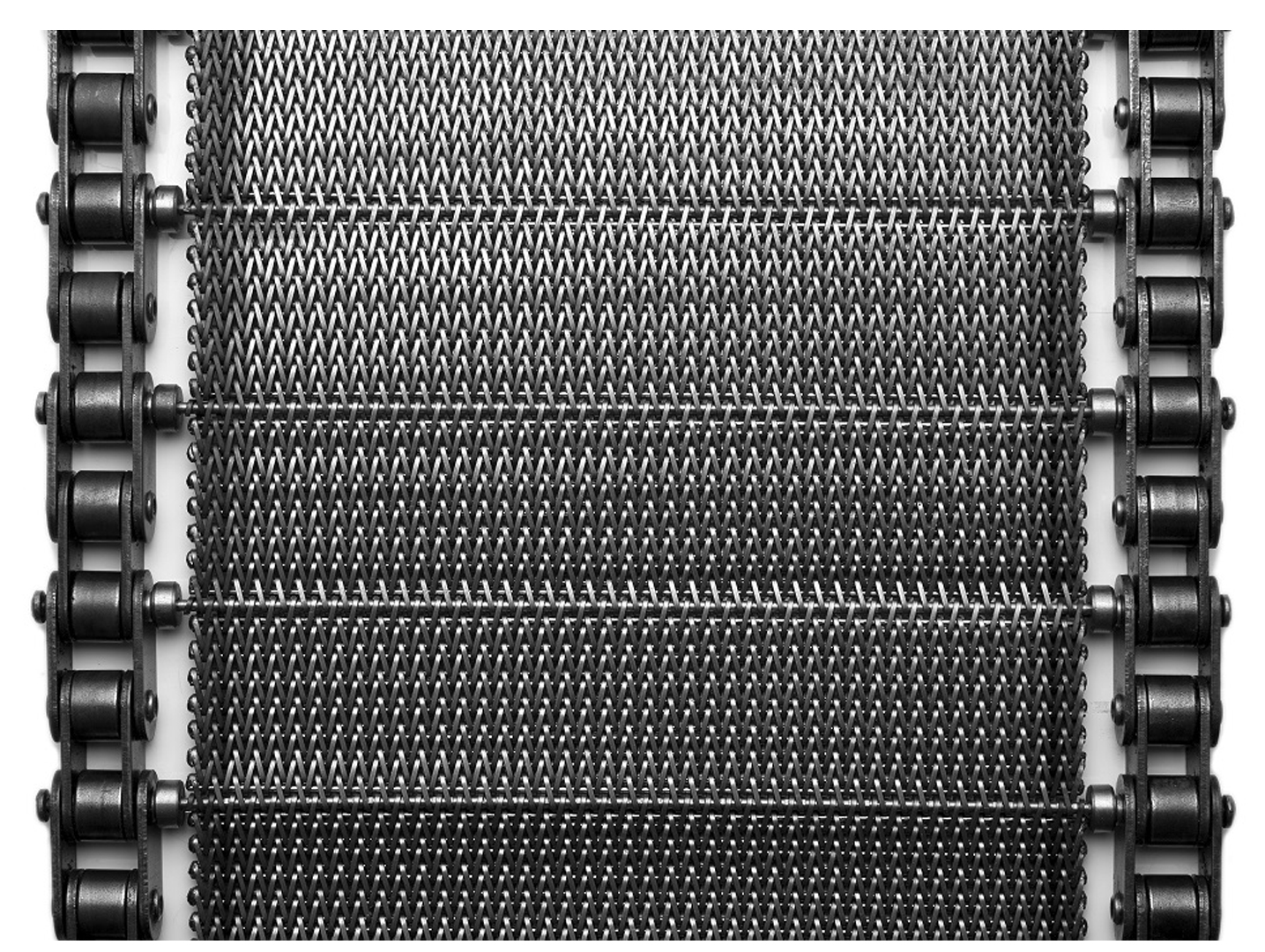

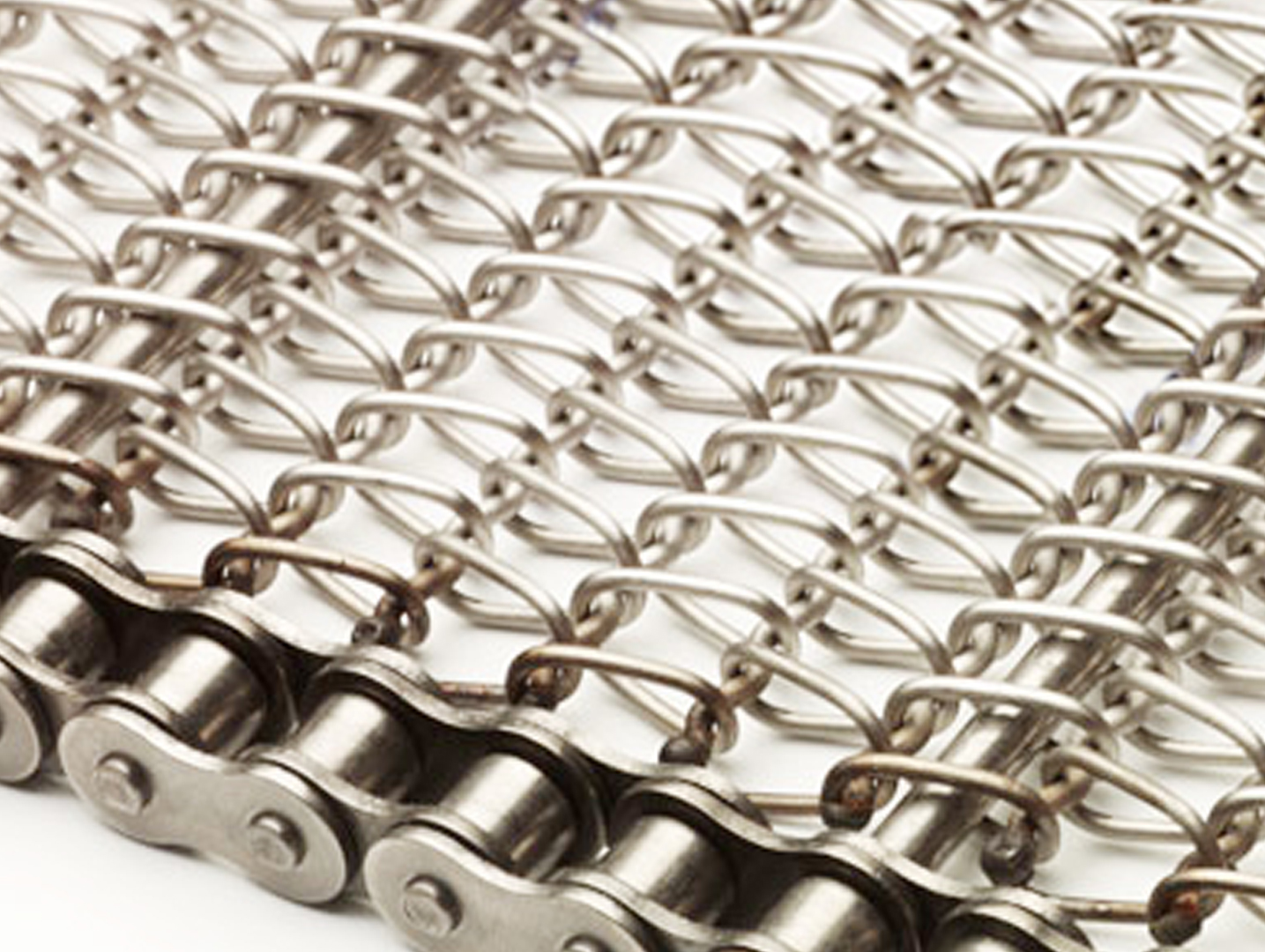

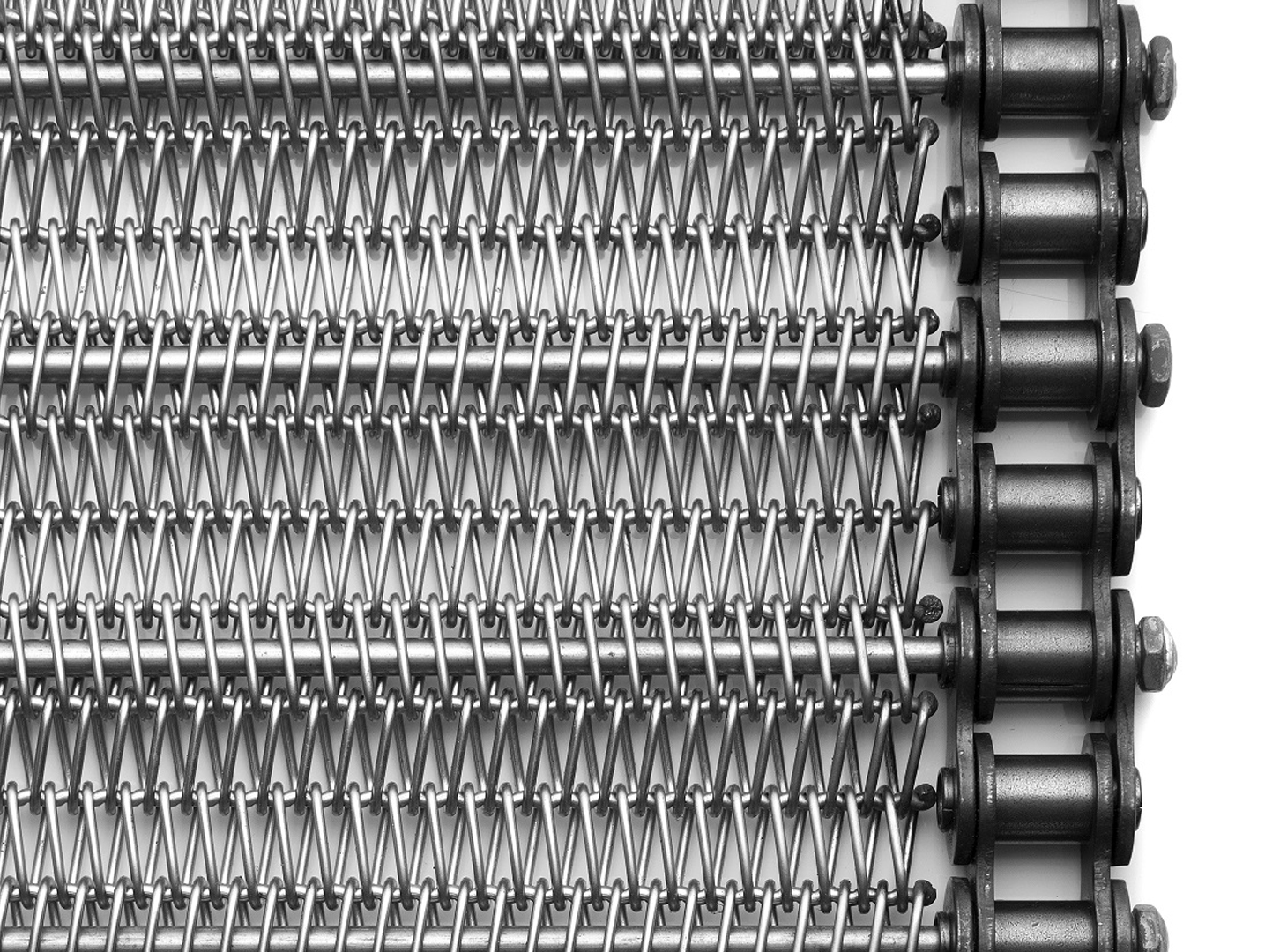

Balanced Spiral is most commonly supplied as friction-drive belt; however certain meshes can be supplied as Positive-Drive, allowing sprockets to engage with the belts mesh. Alternatively, we can supply Balanced Spiral with chain edges for high load applications.

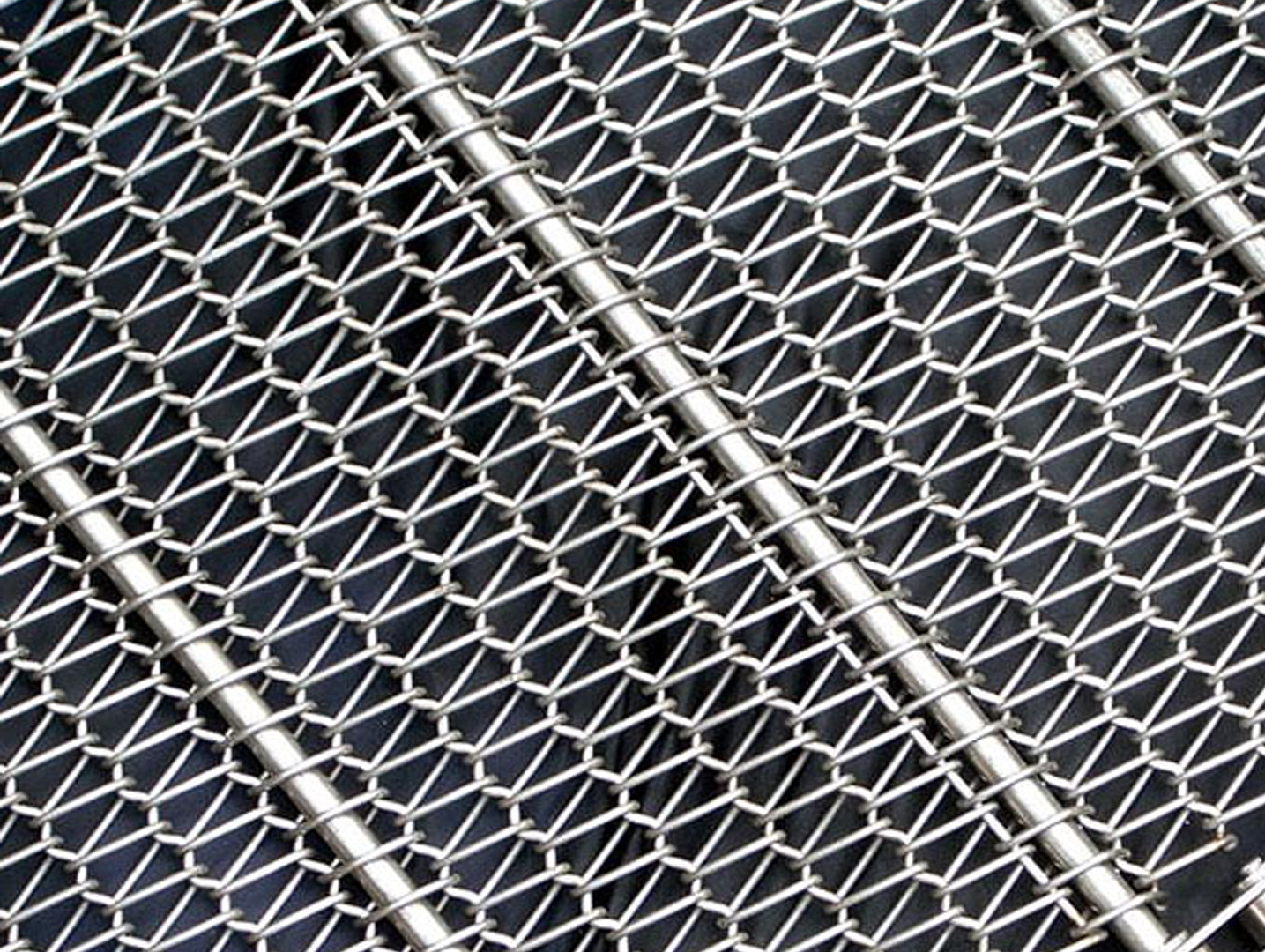

Cross-Flights and Side Plates are available for inclined applications or product separation requirements. Cross rods can also be added to spirals to increase the strength and add more support to mesh belt. These can be manufactured according to customer requirements.
